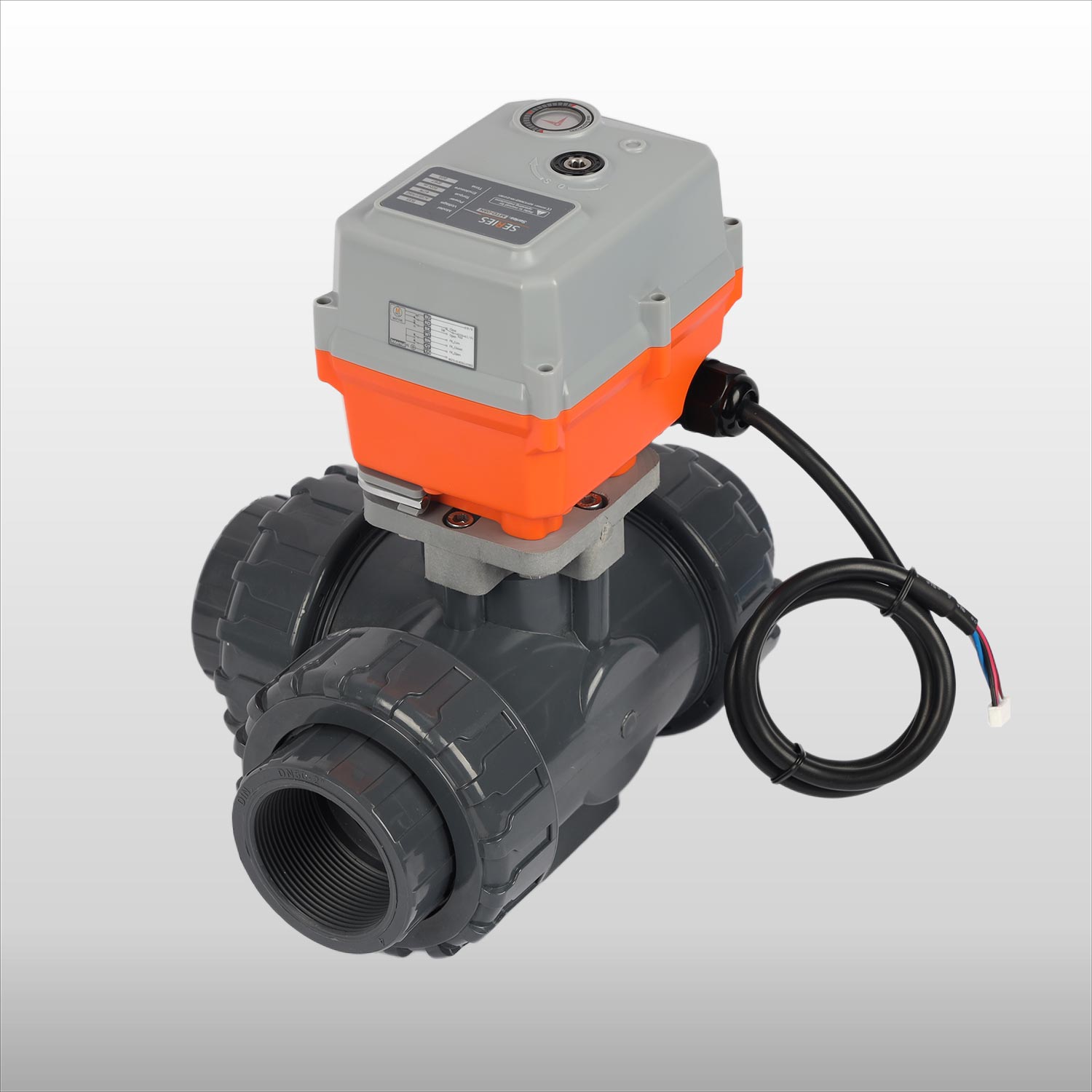

3 Way Ball Valve Actuator

Thread connection: ANSI socket, DIN socket, BSP thread, NPT thread, G thread

Standard: ISO5211(F03/F05/F07/F10)

Accessories: 0.8m cable wires; bracket&screw;with manual override

Customized: Extra wires length, extra socket end

Rated Torque: 10Nm-2000Nm

Enclosure level: IP67

Housing material: ABS/Die-casting aluminum

Rated Voltage: DC12V、DC24V、AC24V、AC110V、AC230V、AC/DC24V、AC/DC95~265V

Modulating control mode: 0~5V、1~5V、0~10V、2~10V、0~20mA、4~20mA

Install Actuator: ON &OFF Actuator, Modulating Actuator, Failsafe capacity Actuator, RS485 Series Actuator, Intelligent on&off Actuator, Intelligent Modulating Actuator

Functions Ordered: High speed On/Off Type,Power Off Reset Type,PID Type,Nb_lot Type

Features 1 Multi-position mode can be realized

Features 2 High performance brushless motor, overheat/overload protection of internal motor.

Features 3 Service life-20000 cycles (Max:9371648 times)

What is the electric valve?

MTD electric valve is a high-end product in automatic control valve. It uses electric energy as power to drive the valve in the lower half with the electric actuator in the upper half, which can not only realize the opening and closing of the valve, but also realize the valve position adjustment function by its modulating type, so as to achieve the purpose of opening, closing or regulating the pipeline medium.

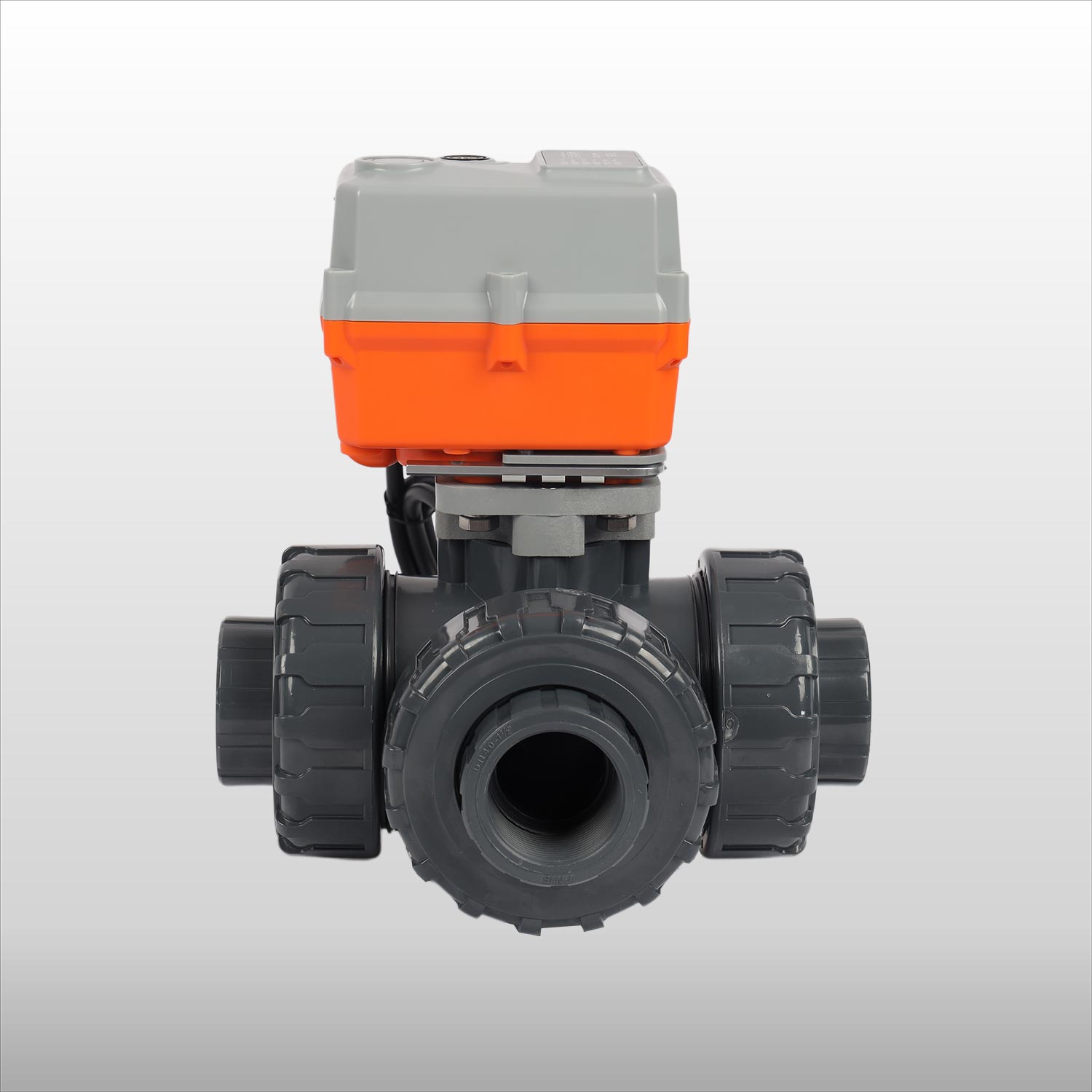

3 Way Motorized Ball Valve

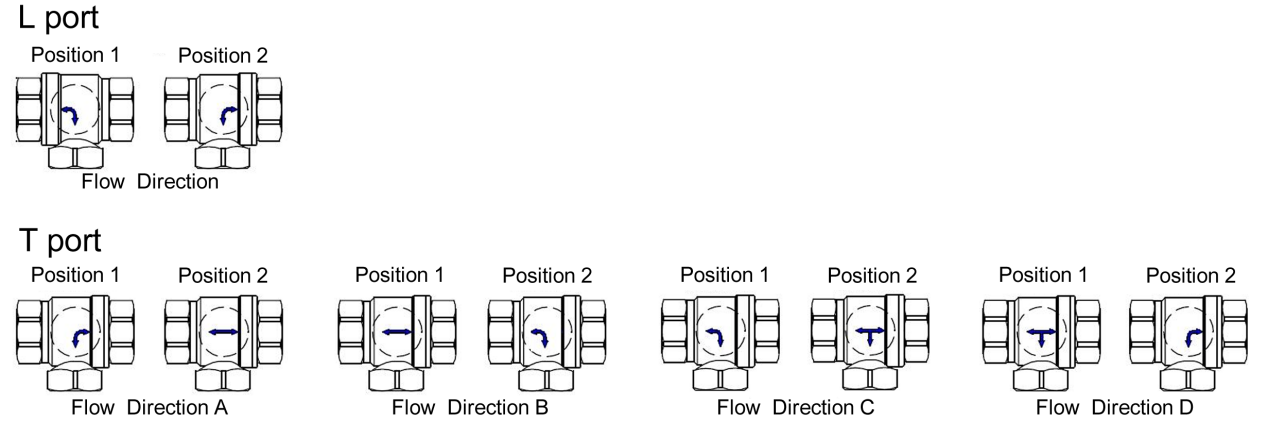

Most of the valves you’ll find are two way/bi-directional, but we also carry a variety of three way motorized ball valves. The 3-way ball valves allow the operator to connect media flows from 3 different directions to control the flow which can divert, distribute, or mix the media with each turn of the ball. Rather than have a bore that goes straight through the ball, there’s L type flow and T type flow can be chosen.

What is the advantages of MTD electric valve compared to the traditional manual valve?

1. It can meet the requirements of most working conditions and the working conditions that ordinary valves cannot be used; can be run in automated systems, remote control ,RS 485 control, wireless control, highly intelligent, so as to save labor cost and operation cost.

2. It has both on-and-off and regulation functions, with valve position indication and output;

3. Applicable to almost all media, with the maximum viscosity of 600mm²/s (centistokes);

4. High temperature resistance, chemical corrosion resistance, wear resistance and durability, water hammer impact resistance;

5. With manual function, it can be equipped with hexagon wrench, hand wheel type, and the actuator can be equipped with explosion-proof type in explosion-proof environment ;

6. Two way circulation, simple operation, stable control and long service life.
